1x4 HDMI Splitter, 1 in 4 Out HDMI Splitter Audio Video Distributor Box Support 3D & 4K x 2K Compatible for HDTV, STB, DVD, PS3

4K 1x4 HDMI Splitter

1x4 HDMI Splitter distributes the input HDMI signals to 4 identical HDMI outputs simultaneously. It is used for data center control, information distribution, conference room presentations, school and corporate training environments etc.

Specifications

- Product Type:HDMI Splitter 1x4.

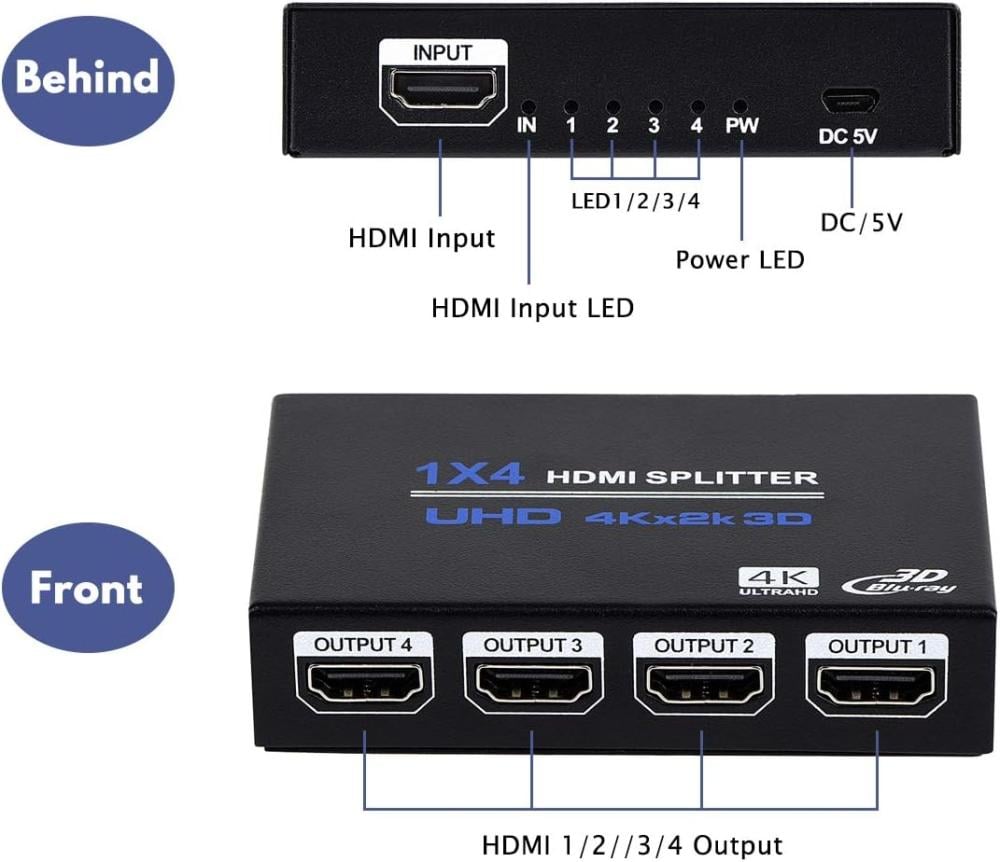

- Interface Type: 1 HDMI in, 4 HDMI out.

- Color: Black

- Power Supply: DC 5V.

- Dimensions: 3.78x2.44x0.87 inches/ 9.6x6.2x2.2 cm

Features

- Support HDMI 1.4b version

- Support 3D video format

- Support high resolution up to 3840x2160/30Hz

- Support highest rate of 3.4Gbps and TMDS clock can be up to 340Mhz

- Support 8/10/12 bit deep color

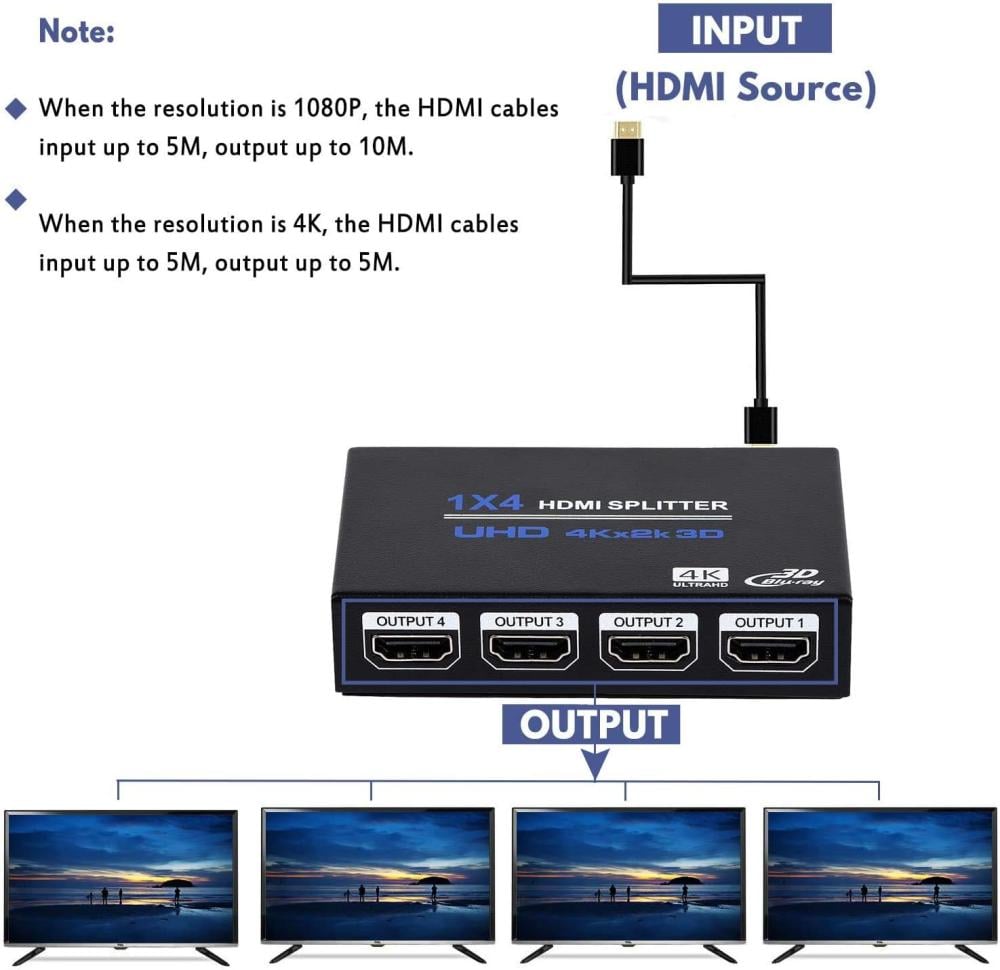

- Support AWG26 HDMI standard cable: input up to 15 meters, output up to 15 meters, (when the resolution is 4K, input up to 8 meters, output up to 8 meters.)

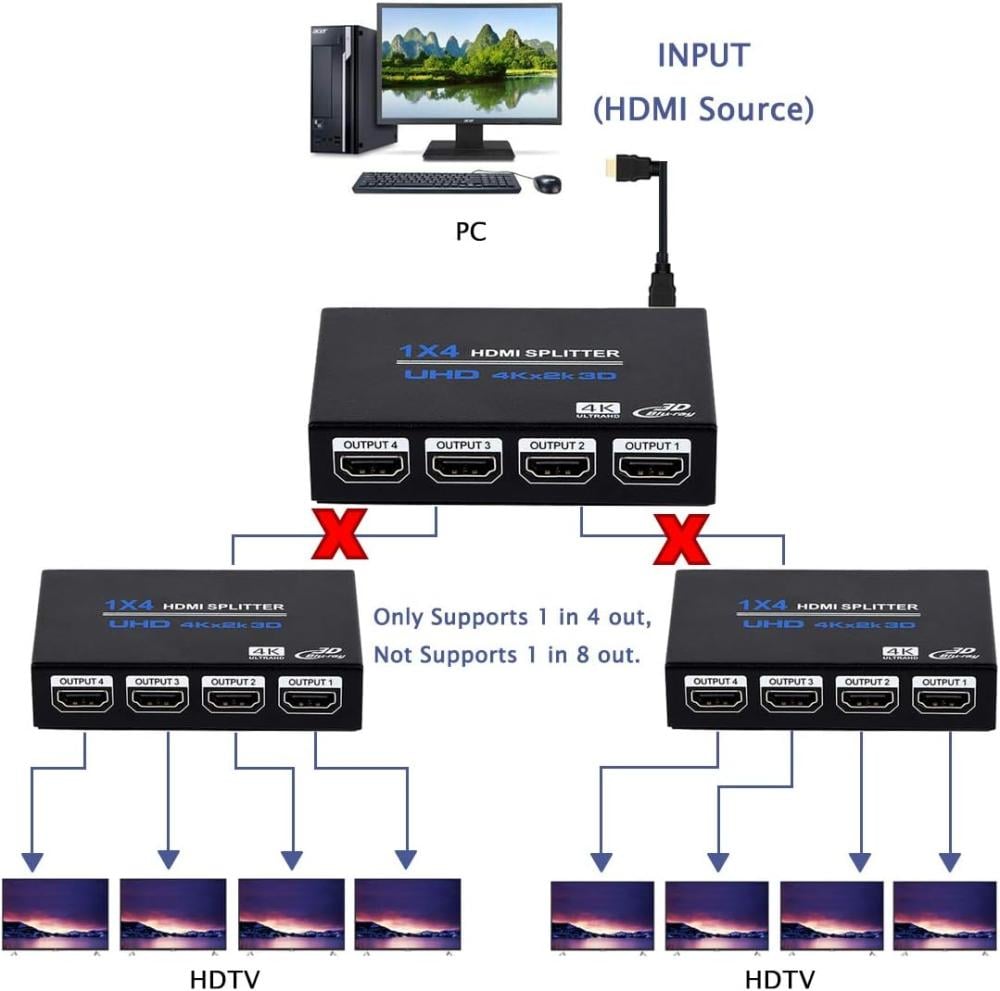

- Support one single HDMI source, accessing to multiple HDMI sknks, the source can be DVD player, A/V receiver, set top box and etc.

Package contents

1x Hdmi splitter 1 in 4 out

1x 5V DC Power Supply

1x Operating Instructions

NOTE

1. The HDMI splitter is not support ARC function.

2. This 1x4 HDMI splitter just mirror the screen,not support extend, each screen will NOT show a difference page.
